Product Description

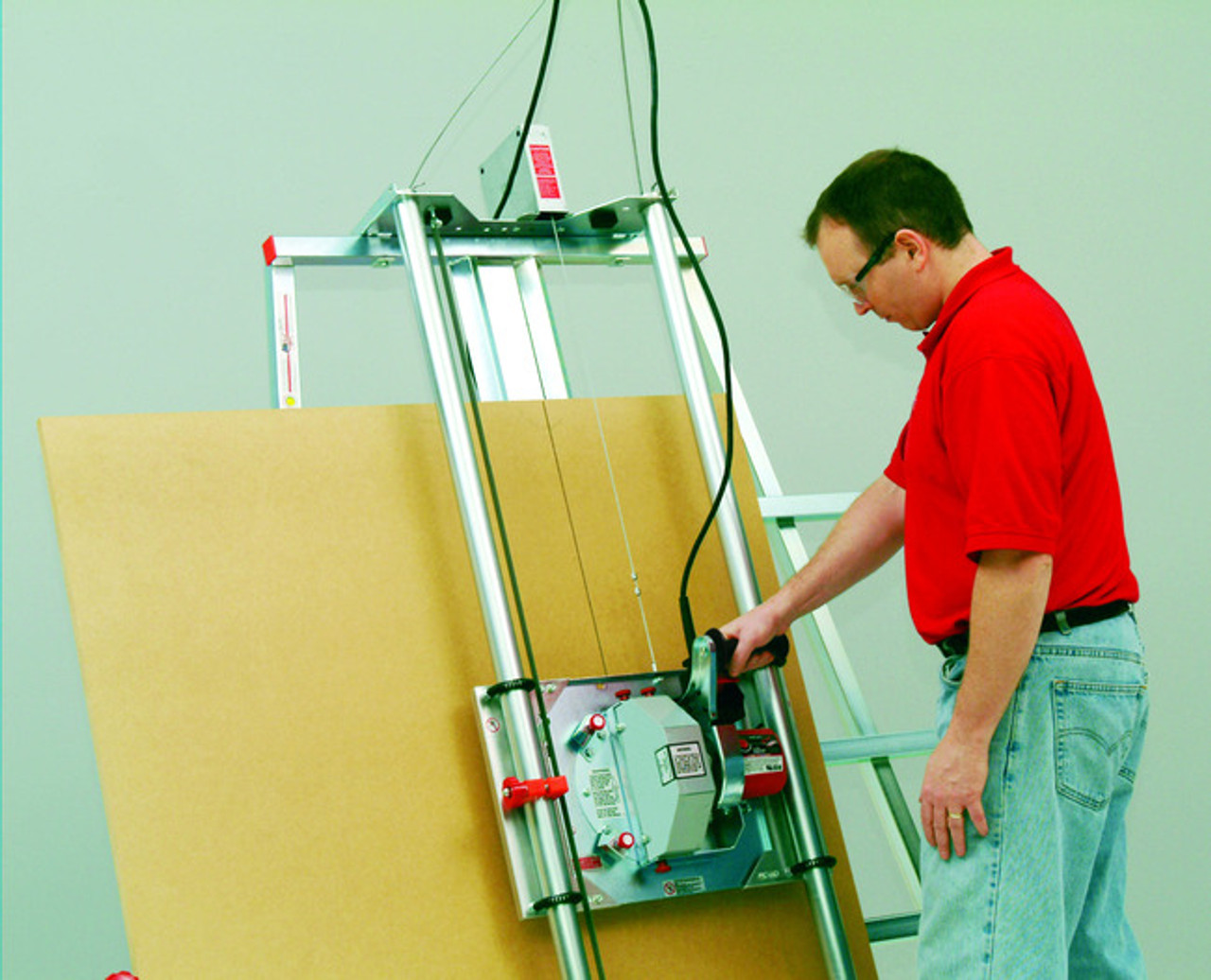

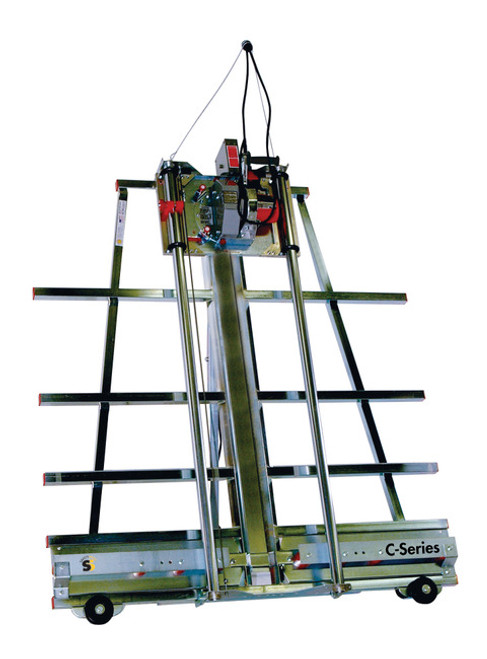

The C5 model packs all of the features of the full-size saws into a portable 5' frame. These panel saws can travel to work sites and fit into shops with limited floor space. The C5 is ideal for cutting 5' × 8' sheets of material.
Standard Equipment
- 3¼ Hp, 15 amp industrial duty saw motor.
- Zinc plated 1¾" steel guide tubes.
- 4 Nylatron roller bearing systems.
- Adjustable vertical and horizontal rulers.
- Thin material pressure guard.
- Spring loaded counter balance system.
- Injection-molded plastic material rollers.
- Quick change from vertical to horizontal cutting.
- 1 year parts warranty.
- Lifetime frame warranty.
| Specifications | C5 |
| Max. Crosscut | 64"/1625mm |
| Max. Rip Cut | 96"/2540mm |
| Max. Cut Thickness | 1¾"/45mm |
| Cut Accuracy, Straight and Square | 1/32"/0,8mm |
| Saw Blade Diameter | 8"/200mm |
| Motor | 120V, 15amp (220V available) |
| Frame Length | 60"/1525mm |
| Shipping Weight | 199 lbs./90kg |
Shipping Infomation
Price listed for shipping is standard shipping. Price does not included tailgate service or expedited shipping. If you need special shipping arrangments please call 1800-428-9898 for a quote.
