Product Description

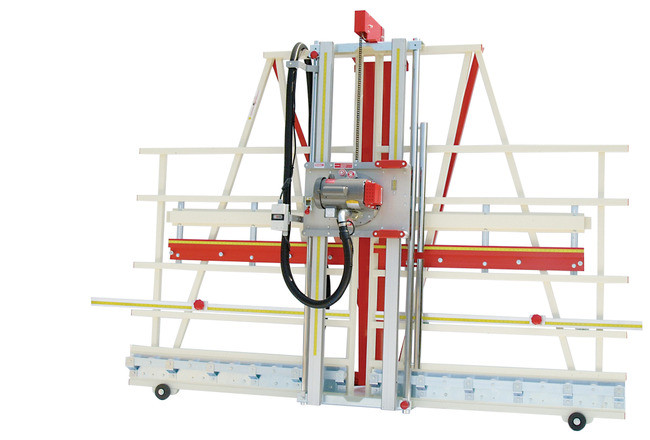

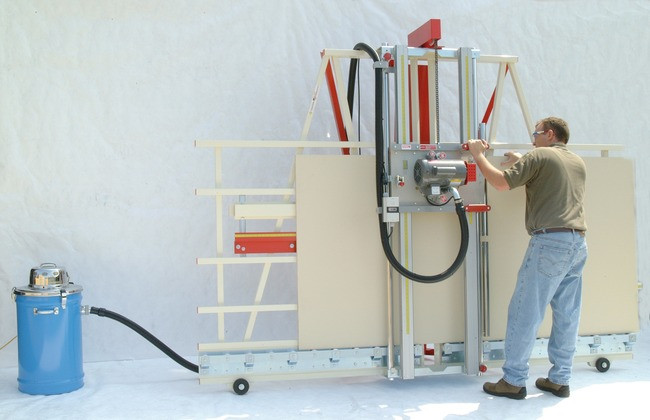

The 7400XL saw is designed for continuous production and tight tolerance cutting. With a 2 horsepower heavy-duty induction motor these saws can handle the toughest applications. The saw carriage travels vertically on two heavy extruded beams utilizing Dual-Vee bearings to deliver cutting accuracy to 0.005" straight and square. Specify this machine for heavy production requirements, large panels and close tolerance panel processing applications. The 7400XL offers an extra large 13' frame length for cutting panels in excess of 10' in length.
Standard Equipment
- 2 Hp, 1~ continuous duty induction saw motor.
- Welded steel frame and integrated stand system
- Dual V-track precision guide system.
- Adjustable vertical and horizontal rulers.
- Quick stop gauges (8 inleft, 5 inright)
- Quick change from vertical to horizontal cutting.
- Floating pressure saw foot.
- Solid aluminum material rollers.
- Enclosed counterweight system.
- MID-WAY FENCEåÎåÈ
- Dust collection ready.
- Hold down bar.
- 1 year parts warranty.
- Lifetime frame warranty.
Optional Equipment
- Stop bar.
- Dust vacuum (1 Hp or 2¼ Hp).
- Material scoring attachment.
- Specialty saw blades.
| Specifications | 7400XL |
| Max. Crosscut | 64"/1625mm |
| Max. Rip Cut | Unlimited |
| Max. Cut Thickness | 2 1/8"/55mm |
| Cut Accuracy, Straight and Square | 0.005"/0,13mm |
| Saw Blade Diameter | 8"/200mm |
| Motor | 1~230V, 11 amp |
| Frame Length | 156"/3950mm |
| Shipping Weight | 1050 lbs./ 476 kg |
