Product Description

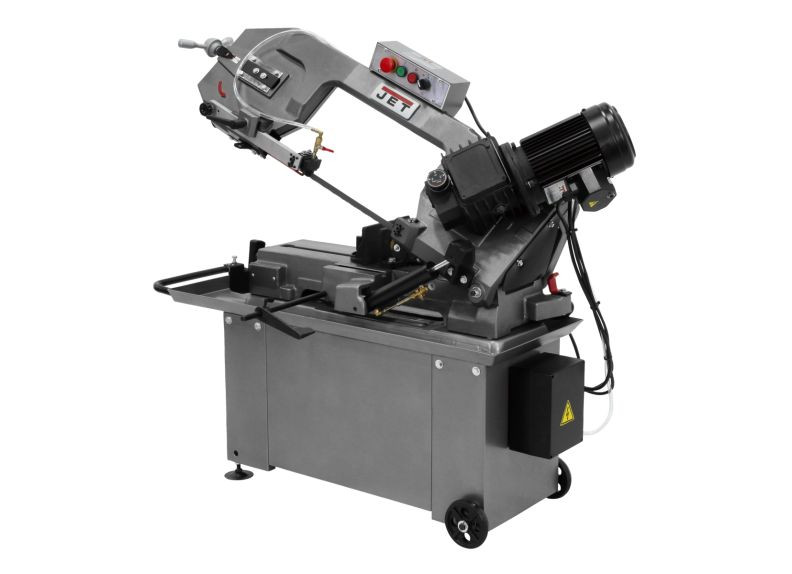

The JET HBS-814GH was engineered with the operator in mind. An easy access control panel and heavy-duty geared head transmission for quick speed change means productivity never slows. Like every JET machine we manufacture, professionals know they can rely on this saw when the project is on the line.
- Heavy-duty geared head transmission for quick speed changes
- Hardened and ground worm gears
- Fully adjustable hydraulic downfeed system
- Easily accessible saw control panel
- Quick-positioning vise with fully adjustable jaws, swivels to 45°
- Built-in, self propelled blade brush extends blade life
- Wheels permit easy storage and movement
- Coolant system
- Adjustable material stop
- 3/4" Bi-Metal blade
| Cutting Capacity (W x D) (In.) | 8 x 14 |
| Round at 90 Degrees (In.) | 8 |
| Round at 45 Degrees (In.) | 6-1/2 |
| Rectangle at 90 Degrees (In.) | 14 x 8 and 2 x 14 |
| Rectangle at 45 Degrees (In.) | 6-1/2 x 6 and 2 x 7 |
| Vise Swivels (Deg.) | 45° |
| Blade Speeds (SFPM) | 135, 197, 256 |
| Blade Wheel Diameter (In.) | 12 |
| Blade Length (In.) | 97 |
| Blade Size (In.) | 3/4 x .035 x 97 |
| Bed Height (In.) | 26 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Weight (Lbs.) | 400 |
| Overall Dimensions (L x W x H) (In.) | 51-1/2 x 18-1/8 x 44 |
