Product Description
Large capacity crosscutting solution.

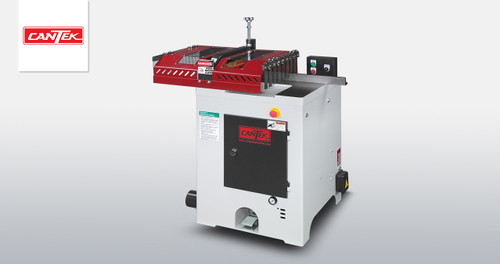

The Cantek PCS30 30″ Pneumatic Cut-Off Saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful motor and adjustable cutting stroke ensure it can effortlessly cut through a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and a security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.
Why Cantek PCS30 30″ Pneumatic Cut-Off Saw?
- Large cutting capacity from 2”x27” up to 10”x10”
- Adjustable cutting stroke to ensure optimum cutting speed and cut quality
- Reliable performance day in and day out
- Added safety features
- Available in Right-Hand & Left-Hand configuration
- Cut off capacity (thickness x width): 2″x27″, 4″x24″, 6″x21″, 8”x16”, 10”x10”
- Powerful 15HP main motor (20HP optional)
- Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push bottom control)
- Adjustable cutting cycle from 10~ 15 strokes per minute
- Cast iron table surface is precision ground assuring high cutting accuracy.
- Material clamp is easily adjusted for workpiece thickness variation.
- CSA/UL magnetic switch
Cutting capacity (thickness x width) | 2″x27″, 4″x24″, 6″x21″, 8″x16″, 10”x10” |
Cycle speed | 10~15 strokes/min |
Cycle operation | Pneumatic |
Saw blade size | 30” |
Saw arbor diameter | 2″ |
Saw blade speed | 1600 RPM |
Dust exhaust diameter | Ø5″ x 3 |
Motor | 15 HP (20HP optional) |
Table size | 50.2″ x 31.9″ |
Net weight | 1430 lbs |
Gross weight | 1694 lbs |
Packing dimensions (L x W x H) | 56.3” x 40.5” x 65” |
Cutting capacity (thickness x width) | 2″x27″, 4″x24″, 6″x21″, 8″x16″, 10”x10” |
Cycle speed | 10~15 strokes/min |
Electrical requirements | 460/3/60 = 21 Amps230/3/60 = 42 Amps575/3/60 = 17 Amps |
