Product Description

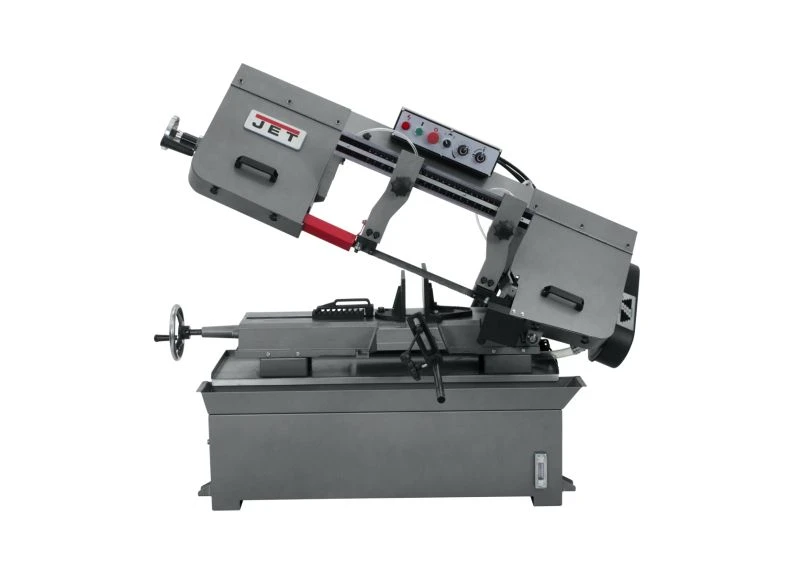

Set on a heavy-duty machined tabled bed to eliminate vibration, the JET 10" x 18" Horizontal Bandsaw delivers a precision cut time after time. Multiple operational features make this a highly desired piece of machinery for any shop.
- Carbide blade guides feature parallel double-row ball bearing support
- Coolant is distributed through the blade guides
- Easy access chip tray allows quick cleanup
- Blade is guarded, regardless of blade guide position
- Large hand wheel and built-in gauge provides easy blade tensioning
- Built-in, self propelled blade brush extends blade life
- Quick-positioning vise with fully adjustable jaws, swivels to 45°
- Fully adjustable hydraulic downfeed with separate on/off control valve
- Automatic shut-off after cut
- Coolant system
- Adjustable material stop
- 4/6 VT Bi-Metal blade
| Cutting Capacity (W x D) (In.) | 10 x 18 |
| Round at 90 Degrees (In.) | 10 |
| Round at 45 Degrees (In.) | 7-3/4 |
| Rectangle at 90 Degrees (In.) | 10 x 16 and 6-1/2 x 18 |
| Rectangle at 45 Degrees (In.) | 10 x 7-1/2 |
| Vise Swivels (Deg.) | 45° |
| Blade Speeds (SFPM) | 82, 132, 210, 330 |
| Blade Wheel Diameter (In.) | 14 |
| Blade Length (In.) | 130-1/2 |
| Blade Size (In.) | 1 x .035 x 130-1/2 |
| Bed Height (In.) | 23-1/2 |
| Motor (HP) | 2 HP, 230V Only, 1Ph |
| Weight (Lbs.) | 776 |
| Overall Dimensions (L x W x H) (In.) | 69 x 28 x 42-3/4 |
